C-JOB PROPOSES CFD AS EEXI SOLUTION

Jan 5, 2023 | Marine environment & clean shipping news

Dutch naval architecture and engineering company C-Job reminds ship operators that the IMO’s EEXI regulation entered into force on 1 January, as the first practical step in mapping emission output and vessels’ efficiencies in the maritime industry.

The result of many EEXI calculations is non-compliance. The first solution considered is for shipowners to derate engines to comply, with some reporting having to derate engines down to 45% of their vessel’s installed power. This causes a substantial reduction of real operational speed and therefore decreases a vessel’s operational flexibility. But foremost, for vessels under charter contacts, it could mean they are no longer complying with contracts. For some shipowners, computational fluid dynamics (CFD) reference speed investigation may present the solution for their ship to remain competitive demonstrating the real EEXI index.

To create an EEXI technical file, various basic vessel parameters are used to calculate the performance at a certain loading condition. One of the parameters is the reference speed of Vref, i.e. the maximum speed that the vessel reaches under specific conditions taking into account various parameters including deadweight, engine load and draught.

There are four ways to prove a vessel’s Vref:

  • Formula suggested by IMO
  • Model tests
  • Sea trials
  • CFD.

Both model tests and sea trials can be expensive ways to establish the VRef to prove EEXI compliance if no documentation is available. This will be often the case with second-hand vessels and sister vessels. This leaves the formula provided by IMO and CFD options.

Filippo Iliopulos, Lead Naval Architect and Project Manager, C-Job, said: “We’ve found that the formula provided by IMO can be quite conservative in some cases. Using CFD rather than the formula can provide a more accurate Vref and sometimes be the difference between a vessel being able to remain competitive in the market or not.”

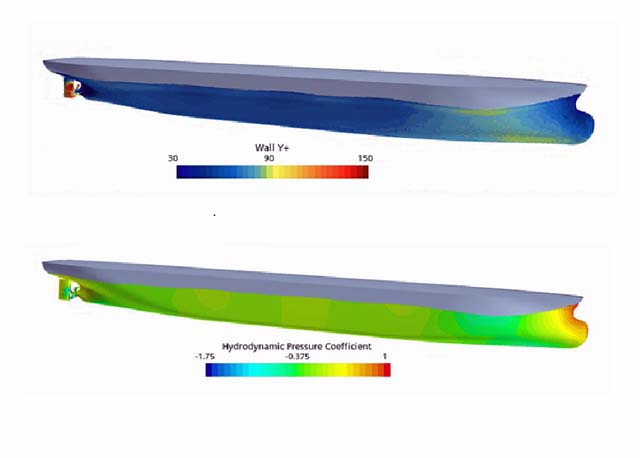

CFD calculations are particularly useful for shipowners who have installed energy-saving measures on their vessels, such as Mewis or Schneekluth ducts, propeller boss cap fins, twisted rudders etc. The data available in this case will be related to the old situation thus painting the wrong picture for EEXI documentation. CFD can prove the new situation of the vessel thus showing the real and higher vessel’s propulsive efficiency which could lead to compliance with the requirements even without the derating of the main engines.

According to C-Job, shipowners who own a series of similar vessels can also benefit from CFD. Where one vessel may not have the required data but a sister vessel does, CFD can fill the gap regarding the lack of documentation.
