Damen Shipyards Group has officially launched its latest vessel, a fully electric Service Operations Vessel (SOV), 70m x 17m, featuring offshore charging capabilities for significantly reduced emissions in the maintenance of offshore wind farms.
Damen set out in 2020 to assess the feasibility of an electric SOV to dramatically increase sustainability of vessel operations at offshore wind farms. The shipbuilder quickly established that technically it would be possible. However, two main questions were to be answered. Firstly, for this to be possible, offshore charging capabilities would be required. Secondly, given that this model represents an increase in Capex, it had to be established whether there was a healthy business case.

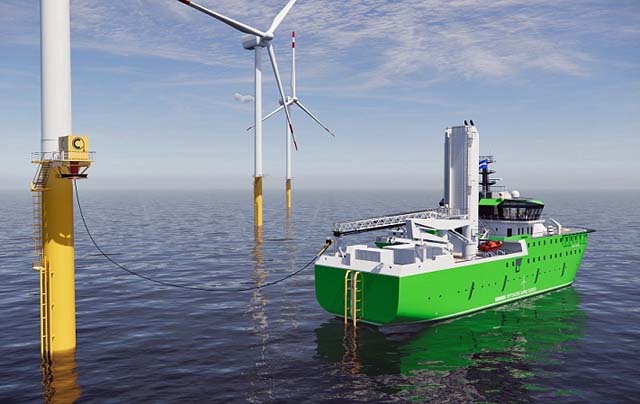

To achieve offshore charging, Damen has partnered with UK-based MJR Power & Automation – a company that has previously developed an offshore charging system for a crew transfer vessel. MJR took up the challenge, developing a system that was fast, efficient and, above all, safe. The charging system uses the motion-compensated gangway to create a connection between the vessel and a turbine or substation offshore, in much the same way a personnel transfer is undertaken. Damen and MJR selected the charging method in order to maximise safety and efficiency. The gangway is controlled from the wheelhouse, requiring no manual interaction with charging equipment. It has the added benefit of utilising pre-existing offshore infrastructure, thereby adding considerable cost-efficiency.
Charging is carried out while the vessel is in a low power, so-called ‘green’ DP mode, requiring less energy than the hotel load. A full charge typically requires energy produced in just a few hours by a single turbine.
The system is designed according to international recognised safety standards, including IEC/IEEE 80005-1. Additionally, it is soon to obtain AiP (Approval In Principle) from DNV, and is designed in accordance with forthcoming offshore charging standards under collaborative development by DNV UK and Norway.
MJR has developed a 4MW charger connector, sufficient for a 70m vessel. The company is also working on a scaled up 8MW version that will enable charging of larger vessels, up to about 90m in length.
MJR MD Paul Cairns said: “The charging system is designed to be safe, convenient and reliable, with rapid connection and disconnection of the charge umbilical. From the outset of this project, the priority has been to ensure the safety of personnel and integrity of the vessel and offshore assets, under all conditions. Charging from an offshore asset represents optimal practicality, providing a means to reduce costs and emissions and optimise efficiency without placing personnel nor infrastructure in a potentially hazardous situation.”
In order to answer the question of whether or not there exists a healthy business case for such a vessel, Damen performed a business case analysis. This analysis took into account many different parameters, including investment cost for chargers and batteries, replacement of batteries, energy costs, price of CO2, large variations of operational profiles, and charge times. The input parameters have been validated in close cooperation with wind farm developers and other stakeholders. Many different scenarios have been analysed, but all had in common a return on investment ranging between 5 years and 15 years, depending on the scenario.
The SOV 7017 E features a 15MWhr battery, sufficient to power the vessel during a full day of operations. The battery is lithium iron phosphate (LFP) in place of the more conventional lithium nickel manganese cobalt (NMC) battery type. This is aimed at maximising the vessel’s sustainable credentials. LFP batteries offer the advantage of being less dependent on sensitive raw materials, particularly cobalt. LFP offers improved safety performance, being less susceptible to ignition and, in the event of ignition, being easier to contain.
In the event that the vessel cannot access electricity for a short period, the SOV 7017 E features full redundancy and is able to continue operations with conventional diesel propulsion.
Further increasing efficiency, the SOV 7017 E boasts Damen’s DPX-Drive layout, featuring four azimuth thrusters providing propulsion independently in any direction and offering considerably reduced underwater noise levels.
The vessel has storage space, workshops, and deck space to undertake the broad scope of transportation and work expected of it. Its 60 cabins provide comfortable accommodation for crew and up to 40 technicians.
Mark Couwenberg, Damen SOV Product Manager, said: “The product launch of the SOV 7017 E demonstrates that the technology is there to make offshore operations fully electric. The reduction in Opex implied by harvesting energy directly from the offshore wind farm implies a business case for this model. We cannot do this alone, however. To make this a reality will require collaboration throughout the chain, with shipbuilder, vessel operator and wind farm developer working together in pursuit of mutual benefit. We’re looking forward to participating in such cooperations as we take this concept forward. Together, we can make our offshore energy production more sustainable.”
