UK RESEARCH INTO AMMONIA AS MARITIME FUEL

Jul 4, 2022 | Maritime & emissions research news

A group of academic and industrial partners has been awarded a £5.5m grant by the Engineering and Physical Sciences Research Council (EPSRC) to accelerate understanding, technologies and policies relating to the use of ammonia as a sustainable fuel, in a five-year project which began in June 2022.

Entitled ‘Decarbonised Clean Marine: Green Ammonia Thermal Propulsion (MariNH3)’, the project brings together academics from Nottingham, Birmingham, Brighton, Cardiff and STFC, as well as partners such as regulators, oil companies, engine manufacturers and other industrial organisations. The lead investigator is Prof. Alasdair Cairns, who is Chair in Propulsion Systems in the Faculty of Engineering at the University of Nottingham, where the majority of the research is being undertaken.

Cairns said: “As countries seek opportunities for decarbonisation, there is a great deal of interest in green ammonia as an energy vector and a fuel for commercial shipping. However, there are a number of considerations relating to the greenhouse gas emissions of international shipping. Roughly 80% of the emissions from the maritime sector are emitted by larger commercial vessels (i.e. Megawatt scale engines), where alternative solutions such as electric and fuel cell remain limited in energy density and/or cost. This challenge is compounded by the fact that the engines in these vessels typically remain in service for several decades. Ammonia represents an attractive solution, but significant challenges remain around slow combustion and the emissions of NOx, and it is these challenges we wish to address through research in fast burning and ultra-low NOx combustion systems. As a group, the MariNH3 consortium firmly believes that a mix of technologies will be required for the most effective decarbonisation of the marine sector because there is no ‘silver bullet’ fuel or technology to shortcut the path to Net Zero. Ammonia is set to play a key role, but there is current concern with the approach being adopted by some marine engine manufacturers, which involves ammonia dual fuelling, which is where some of the fuel oil (marine diesel) is replaced with ammonia as a retrofit solution. Typically, up to 40% diesel is still used in these engines, which will have consequences for local pollution, and limit the scope for decarbonisation. The vision of the EPSRC MariNH3 programme is therefore to investigate full decarbonisation of marine transport emissions through multidisciplinary research focused on highly promising disruptive ammonia fuelled engine concepts, which have the potential to allow full decarbonisation, whilst minimising pollution and end-use energy demand.

“Our goal is to develop the best technical solutions in parallel with appropriate acceptance criteria and policy, so that we can develop technologies and policies which are ‘right first time’ and appropriately scaled across the marine sector. The MariNH3 framework is based around a ‘technology agnostic’ approach to life cycle analysis to ensure that ammonia end-use is implemented appropriately. We wish to achieve this while developing the next generation of propulsion researchers, capable of adopting a technological and systems engineering approach to help steer and maintain the strong powertrain research community that we have in the UK.”

Green hydrogen, produced by the electrolysis of water using renewable energy, offers enormous potential in the decarbonisation of the energy sector as a whole. As a fuel, the main advantage of hydrogen (H2) is that it does not contain carbon, so combustion emissions do not contain CO2 (greenhouse gas) or CO. However, when burned in air hydrogen does produce harmful nitrogen oxides. With high flame speed and temperature, the combustion characteristics of hydrogen differ from conventional fuels, but the main challenges with hydrogen relate to its storage and distribution. So, if the question is ‘how do we exploit the advantages of green hydrogen?’ the answer is: convert it to ammonia (NH3).

Hydrogen can be converted to ammonia via the Haber-Bosch process which reacts hydrogen with atmospheric nitrogen under pressure. However, this process is energy intensive and produces high levels of carbon dioxide emissions. In the past, ammonia has been regarded as a useful medium for the transport of energy, so that it can be cracked into nitrogen and hydrogen at the point of delivery.

It has been estimated that green ammonia will cost two to four times more to produce than conventional ammonia (steam reformation of methane in natural gas). Nevertheless, it is anticipated that green ammonia costs could drop significantly after the scaling up of production – assuming that ammonia powered engines can be developed successfully.

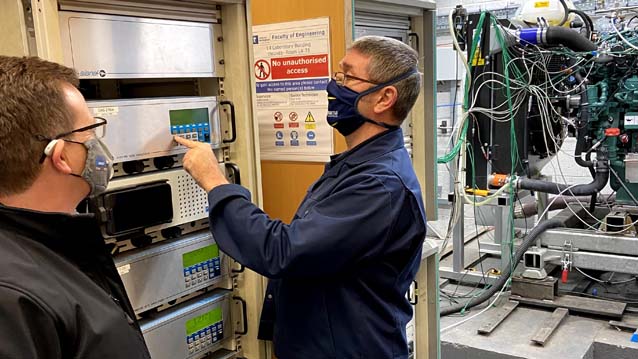

The MariNH3 research project’s practical research is being conducted at the University of Nottingham’s Powertrain Research Centre in the Faculty of Engineering, which includes a Volvo marine specification compression ignition (diesel) engine, a jet ignition engine and a comprehensive suite of Signal Group exhaust gas analysers. As the combustion characteristics of ammonia differ greatly from conventional fuels, the researchers are looking at ways to refine the technology whilst maximising the efficiency with which energy is utilised and minimising potentially harmful emissions. Nitrogen and oxygen are the two main components of atmospheric air, but they do not react at ambient temperature. However, in the heat of combustion, the two gases react to form nitric oxide (NO) and nitrogen dioxide (NO2). This is an important consideration for the MariNH3 team because emissions of these gases (collectively known as NOx) have serious health and environmental effects. A S4 Quasar heated vacuum chemiluminescence gas analyser from Signal Products continuously measures NOx, NO and NO2. It is also important to measure any organic carbon in the emissions, so a S4 Solar flame ionisation detector performs continuous VOC analysis. To complete the profile of exhaust gas analysis, a S4 Pulsar Non-Dispersive Infrared multi-gas analyser provides continuous measurements of carbon monoxide, carbon dioxide, and nitrous oxide. The Pulsar is also fitted with an oxygen sensor.

Ammonia has a higher absolute minimum ignition energy than traditional fuels, so the researchers are looking at ways to improve the combustion characteristics. For example, they are investigating the effects of co-firing with a small amount of hydrogen, as well as the use of diesel as a pilot fuel to promote ignition. In addition, they are also investigating the use of a jet ignition engine to promote the combustion event. The combustion gas analysers are supplied by Signal Group.

Signal’s James Clements said: “We have worked with the University’s Faculty of Engineering for many years, but we are particularly pleased to be able to help with the MariNH3 project. The world is desperate to achieve Net Zero as soon as possible, so this project is at the forefront of research to find solutions, and we are both delighted and honoured to help.”
